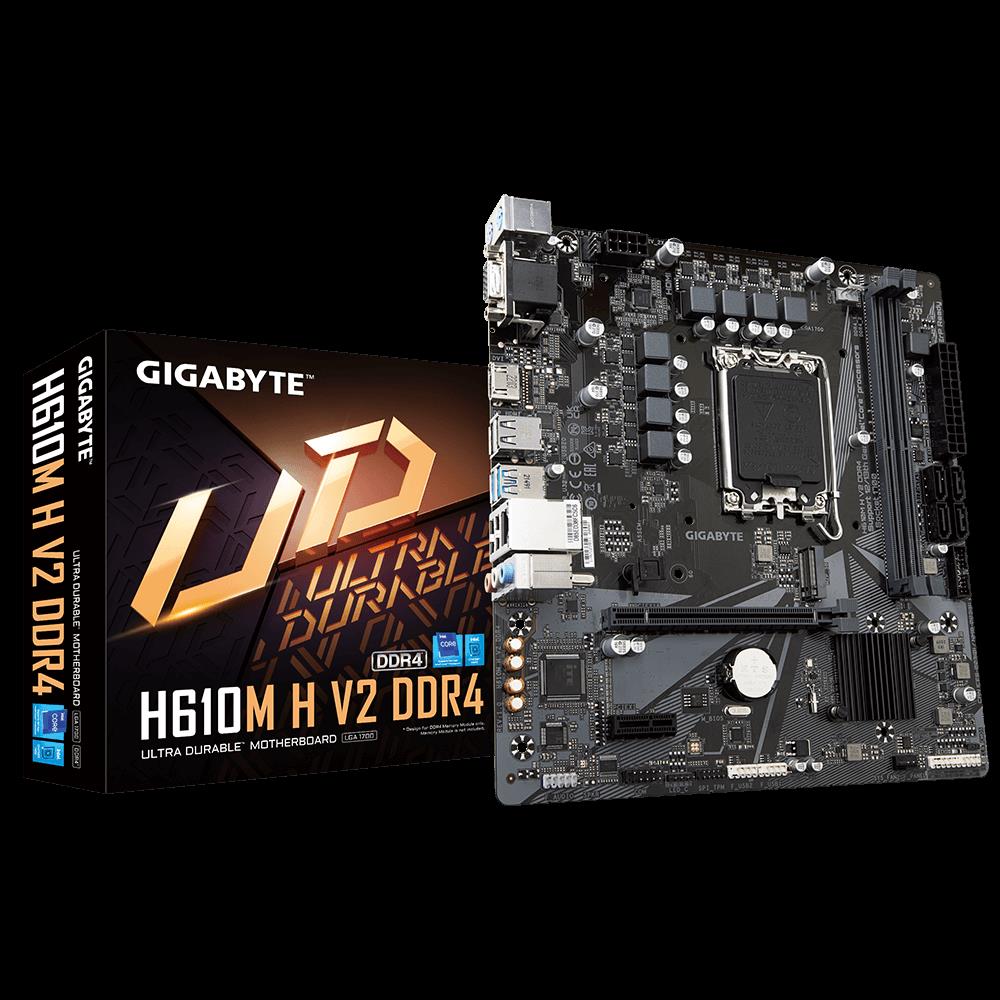

Gıgabyte H610m H V2 Ddr4 1700P Ddr4 Hdmı/Vga Sata3 Usb3.2 Matx
Özellikler:
- İşlemci Tipi: INTEL
- Soket Yapısı: 1700P
- Bellek Tipi: DDR4
- HDMI: Var
- DVI: Yok
- Display: Yok
- Bellek Yuvası: 2 Adet
- Bellek Desteği (Max): 64GB
- M.2 Desteği: 1xM.2
- O/B VGA: Var
| MARKA | GIGABYTE |
| GARANTİ SÜRESİ | 24 |
| EAN | 4719331851743 |
| İŞLEMCİ | LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU |
| YONGA SETİ | Intel® H610 Express Chipset |
| BELLEK | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| DAHİLİ GRAFİK | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. |
| GENİŞLEME YUVALARI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| SES DESTEĞİ | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| USB PORTLARI | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| DEPOLAMA ARAYÜZÜ | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| ARKA GİRİŞ/ÇIKIŞ PORTLARI | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| İŞLETİM SİSTEMİ DESTEĞİ | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| FORM FAKTÖRÜ | Micro ATX Form Factor; 23.0cm x 21.5cm |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Ürün Özellikleri
İşlemci Tipi
INTEL
Soket Yapısı
1700P
Bellek Tipi
DDR4
HDMI
Var
DVI
Yok
Display
Yok
Bellek Yuvası
2 Adet
Bellek Desteği (Max)
64GB
M.2 Desteği
1xM.2
O/B VGA
Var
