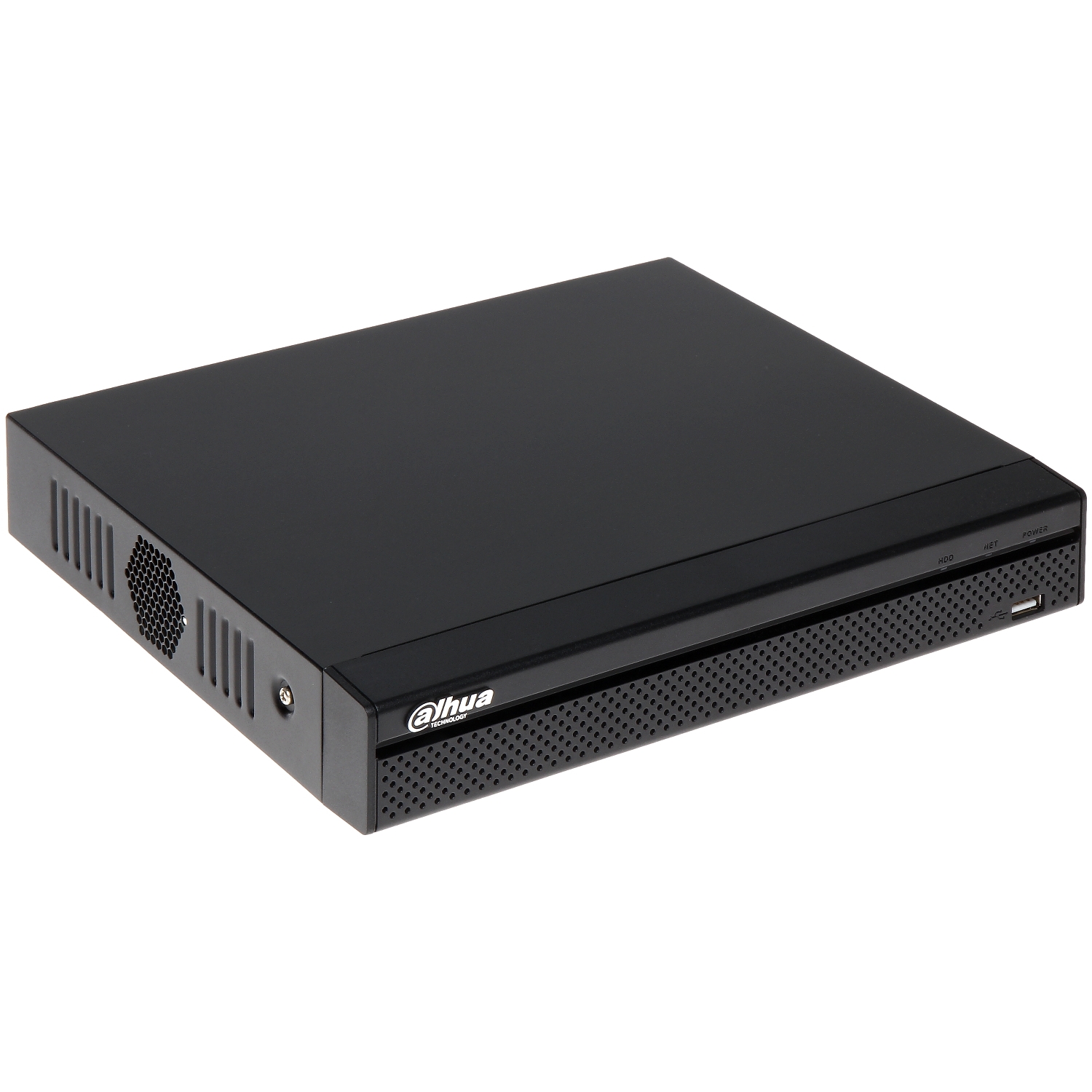

DAHUA NVR4116HS-4KS2/L 16KANAL VGA/HDMI NVR KAYIT CİHAZI

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

IP Camera Input

4/8/16 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

Decoding Capacity

2ch@4K(30fps)/8ch@1080P(30fps)

Multi-screen Display

4CH: 1/4. 8CH: 1/4/8/9   16CH: 1/4/8/9/16

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Compression

H.265/ H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate

80Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Trigger Events

Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips

Alarm input

N/A

Relay Output

N/A

Backup Mode

USB Device/Network

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Interface

1 RJ-45 Port (10/100Mbps)

Ethernet Port

1 Independent 100Mbps Ethernet Port

PoE

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Internal HDD

1 SATA III Port, Up to 10 TB capacity for each HDD

HDD Mode

Single

USB

2 ports(1 Rear USB2.0, 1 Front USB2.0)

RS232

N/A

RS485

N/A

Power Supply

DC12V/2A

Power Consumption

<6.3W (Without HDD)

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Dimensions

Compact 1U, 260mm×224.9mm×47.6mm

Net Weight

0.8kg (1.76 lb) (without HDD)

Gross Weight

1.6kg(3.53 lb)(without HDD)

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL60950-1
